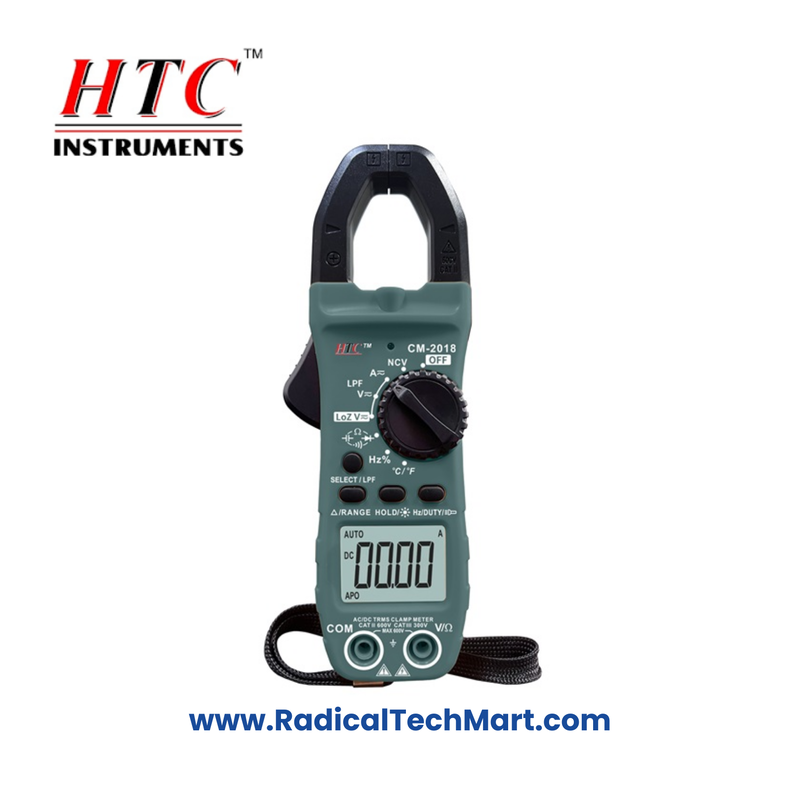

HTC Instruments CM-2018 Clamp Meter

Key Features:

• 3-Digit Clamp Meter with Backlight
• 5,999 Count & Polarity Display
• Clamp Torch
• Jaw Open: 28mm
• Non-Contact Voltage (NCV): 5 Ranges
• True RMS
• LPF & LoZ V (Low Pass Filter & Low Impedance Voltage)
• Special Functions:
  • Diode Test: Yes
  • Continuity Buzzer: > 50Ω + 10Ω
  • Low Battery Display: Approx. > 2.6V
  • Auto Power OFF: 15 min
  • Function Protection: Yes
• Input Impedance: 10MΩ
• Sampling Rate: 3 times / sec.
• AC Frequency Response: 50-400Hz
• Power Supply: AAA 1.5V x 2
• Standard Accessories:
  • Soft Carrying Case
  • Manual Test Lead
  • TP-04 Temperature Probe
• Dimensions: 35mm (H) x 123mm (W) x 270mm (D)

Technical Specifications:

1. Here is the data you provided converted into a table format:

   Measurement Type	Range	Resolution	Accuracy
   DC Voltage (DCV)	600mV	0.1mV	± (1.0% reading + 5)
   	6V	0.001V	± (0.5% reading + 5)
   	60V	0.01V	± (0.5% reading + 5)
   	600V	0.1V	± (0.5% reading + 5)
   	LoZ 0V-600V	0.1V	± (2.0% reading + 10)
   Frequency	10Hz ~ 10MHz	0.001Hz ~ 1kHz	± (0.5% reading + 4)
   Temperature	-40°C ~ 1000°C	1°C	< 400°C: ± (1.0% of reading + 5) ≥ 400°C: ± (1.5% of reading + 15)
   	-40°F ~ 1832°F	1°F	< 750°F: ± (1.0% of reading + 5) ≥ 750°F: ± (1.5% of reading + 15)
   DC Current (DCA)	60A	10mA	± (1.5% reading + 5)
   	600A	100mA	± (1.5% reading + 5)
   	800A	1A	± (1.5% reading + 5)
   AC Voltage (ACV)	6V	0.001V	± (0.8% reading + 5)
   	60V	0.01V	± (0.8% reading + 5)
   	600V	0.1V	± (0.8% reading + 5)
   	LPF 0V-600V	0.1V	± (4.0% reading + 5)
   	LoZ 0V-600V	0.1V	± (2.0% reading + 10)
   AC Current (ACA)	60A	10mA	± (1.5% reading + 5)
   	600A	100mA	± (1.5% reading + 5)
   	800A	1A	± (1.5% reading + 5)
   Capacitance	6nF	1pF	± (5.0% reading + 10)
   	60nF	10pF	± (5.0% reading + 10)
   	600nF	100pF	± (2.5% reading + 5)
   	6μF	1nF	± (5.0% reading + 10)
   	60μF	10nF	± (5.0% reading + 10)
   	600μF	100nF	± (5.0% reading + 10)
   	6mF	1µF	± (5.0% reading + 10)
   	60mF	10µF	± (5.0% reading + 10)

   This format should make it easy to review and compare the different ranges and their associated accuracies.
